Radiolink T8S 8-kanaals zenderset Bluetooth (Mode 2) met R8EF ontvanger
€59,95
De Radiolink T8S 8-kanaals zenderset Bluetooth (Mode 2) met R8EF ontvanger is ideaal voor drones, boten en vliegtuigen. Deze Radiolink T8S 8-kanaals zenderset Bluetooth (Mode 2) met R8EF ontvanger is universeel en heeft een groot bereik tot 2km.
Beschrijving
De Radiolink T8S 8-kanaals zenderset Bluetooth (Mode 2) met R8EF ontvanger is ideaal voor drones, boten en vliegtuigen. Deze Radiolink T8S 8-kanaals zenderset Bluetooth (Mode 2) met R8EF ontvanger is universeel en heeft een groot bereik tot 2km.
Met zijn formaat en gamepad-uiterlijk is de T8S-zender supergemakkelijk overal mee naartoe te nemen omdat hij veel minder ruimte inneemt dan conventionele zenders.
FHSS-technologie
2 km stuurafstand (vliegend model)
Programmeermogelijkheden dankzij de bluetooth verbinding met je smartphone.
Een ingebouwde oplaadbare batterij, met USB-oplaadstekker.
De meegeleverde ontvanger biedt PWM-uitgangen, maar ook SBUS- en PPM-uitgangen.
De chip in deze T8S is de Amerikaanse TICC2500 (Open TX, hetzelfde als Frsky X9D), waarvan de transmissiesnelheid 3 keer sneller is dan Open TX.
De zender is te koppelen met de andere Radiolink ontvangers uit ons assortiment.
Specificatie’s Radiolink T8S 8-kanaals zenderset Bluetooth (Mode 2) met R8EF ontvanger:

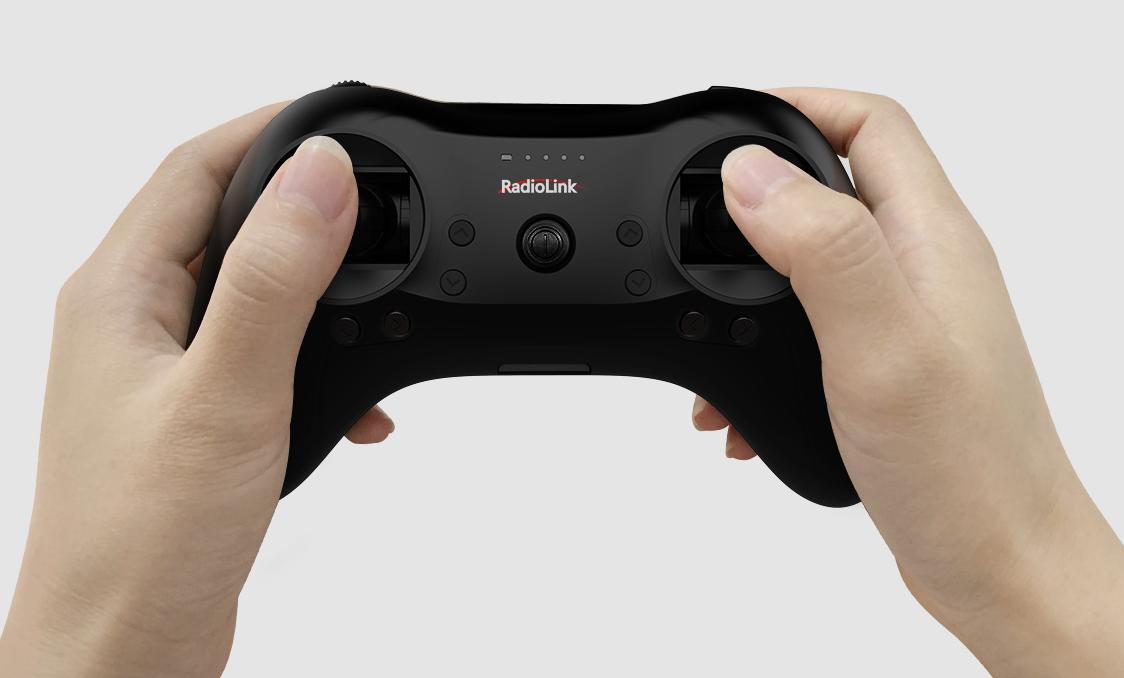

Ergonomics Design
Perfect ergonomics design with the small size and suitable weight and the removable joysticks personalized to players’ hands and control habits make the long flight more pleasant.

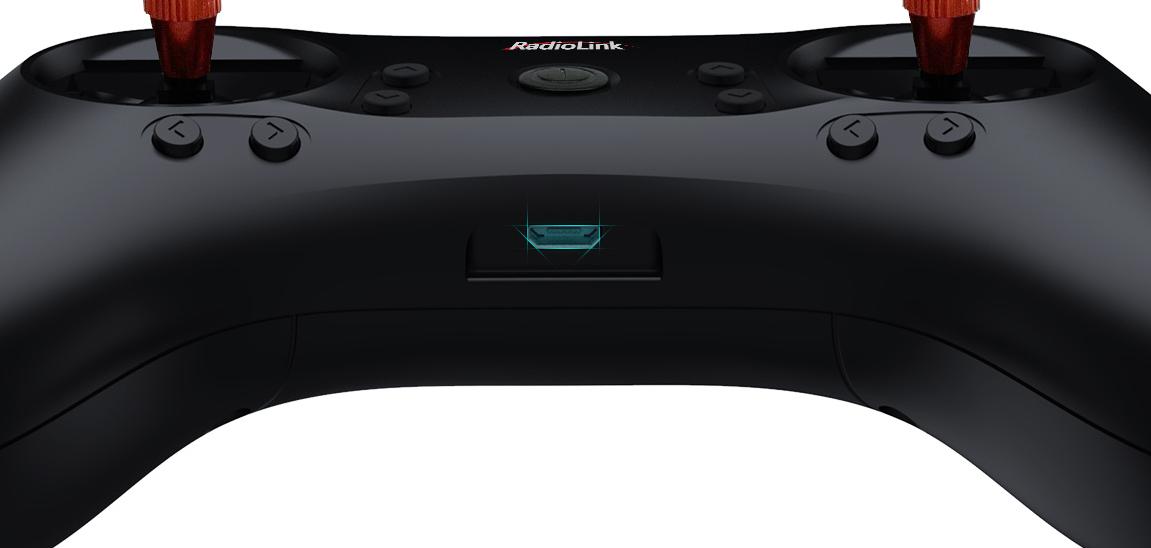

USB Charging
The built-in IS 900mAh lithium battery can be directly charged by computer or mobile charger with a USB cable. When the voltage is less than 3.7V, the green battery indicator will flash with Dee sound as an alarm.

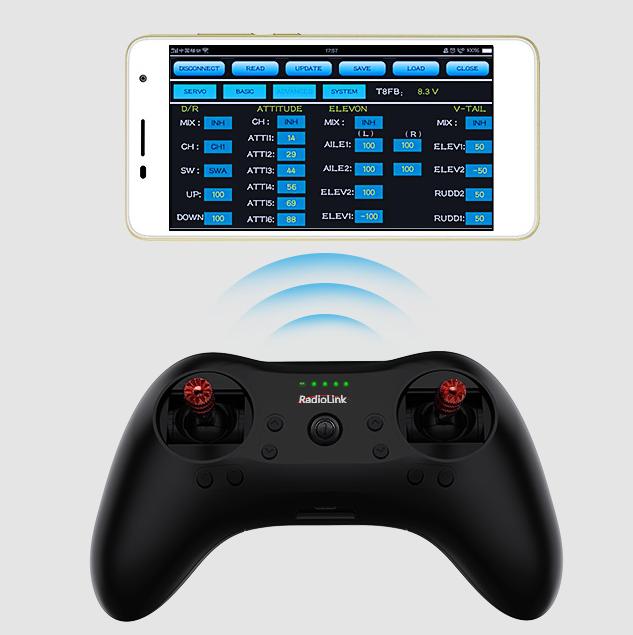

APP Parameter Setup, USB Upgrade
Parameters can be easily set and modified with mobile App connected via Bluetooth. USB upgrades with new functions added and keeps T8S always advanced. Only personalize the parameters once and data can be easily copied in quantities to the same model remote controllers.
- Mobile APP is currently only Android supported. Displayed language on Android APP is English.
- Upgrade firmwares are only available to systems of WIN7AMN8A/VIN10/XP.
SBUS/PPM/PWM Supported
RadioLink receivers compatible with T8S support FUTABA S-BUS connector and PPM output and realize the flight controller single line input and lightens the total weight of the whole aircraft. With the T8S in hand to have all functions. R/C fans can fully enjoy with fun!

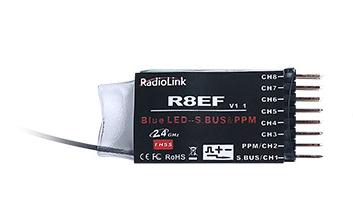

Receiver
The set comes with a R8EF receiver which allows you to choose between PWM outputs, or SBUS and PPM outputs.
It is also possible to use a miniature R8FM receiver that only outputs the SBUS and the PPM, and measures only 16 x 21.5 x 1 mm, to be purchased separately.

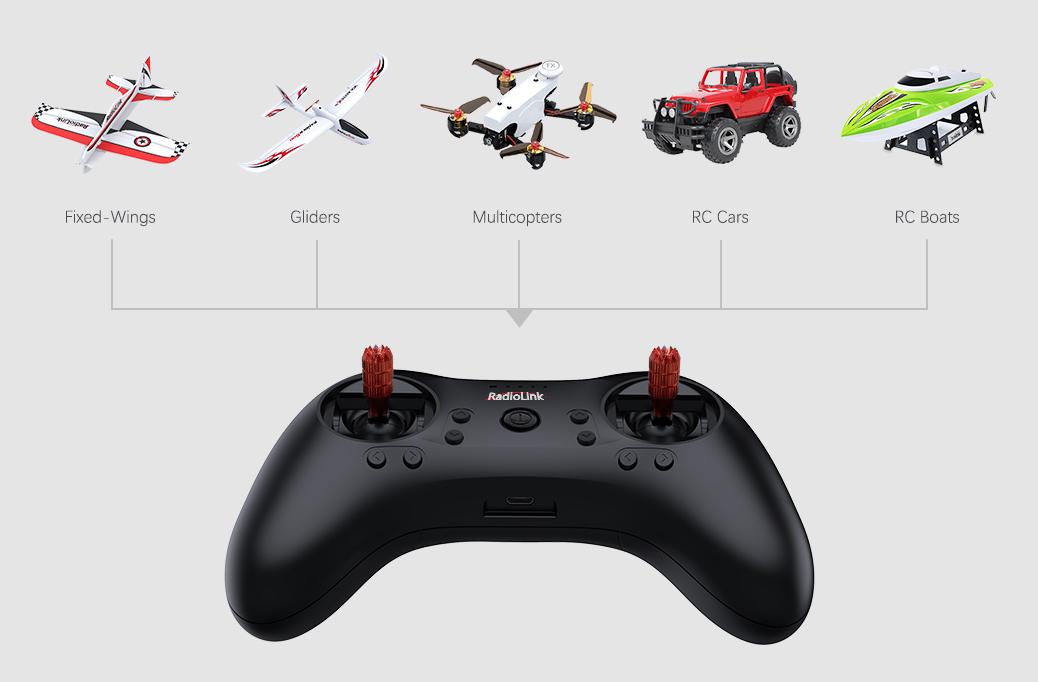

Multiple Models
Compatible with fixed-wings, gliders, multicopters, RC cars and the receiver with 21cm antenna is also perfect for easy RC boats control.
Programmable Mix Control
Basic menu, advanced menu and various mix controls can be personalized to channel 6 and above. Flight modes are set with the two 3-way switches in the flight controller PIX by default.
Long Flight Time
The brand new hardware design of T8S has super low battery consumption of 150mA. Total flight time lasts 5 hours long when battery is fully charged.
T8S Transmitter :
- Output frequency : 2,4 GHz (2400-2483.5 Mhz)
- Dimensions : 162,5 x 95 x 57 mm
- Weight : 142 g
- Modulation mode : GFSK
- Reception sensitivity : -104 dBM
- Spread Spectrum : FHSS 67CH Pseudo random frequency hopping
- Transmission rate : 38 kbps
- Précision : 4096, 0.5us/section
- Operating voltage : 4,2 V
- Current : <150 mA
- Transmitter Power : <100mW (20dBM)
- Supported receivers : R8EF (included), R8FM (mini), R7FG, R8F, R6FG, R6F, R4FGM
- Simulator supported : Yes
R8EF receiver
- Operating voltage : 3,7 – 4,2 V
- Current : < 30 mA
- Dimensions : 48.5 x 21 x 11 mm
- PWM outputs : 1.0ms – 2.0ms
- Cycle : 15ms/frame
- T8S transmitter
- R8EF Receiver
- USB Cable
- Throttle-Stick Spring retainer
- Instruction manual
